Specifications: ETR100 thruster is a complete sub-system that is suitable for all types of Unmanned Underwater Vehicles (UUV) in both categories Autonomous Underwater Vehicles (AUV) and Remotely Operated Vehicles (ROV).
In addition to ETR100’s high performance and reasonable power consumption, we take into consideration its compact size and light weight.

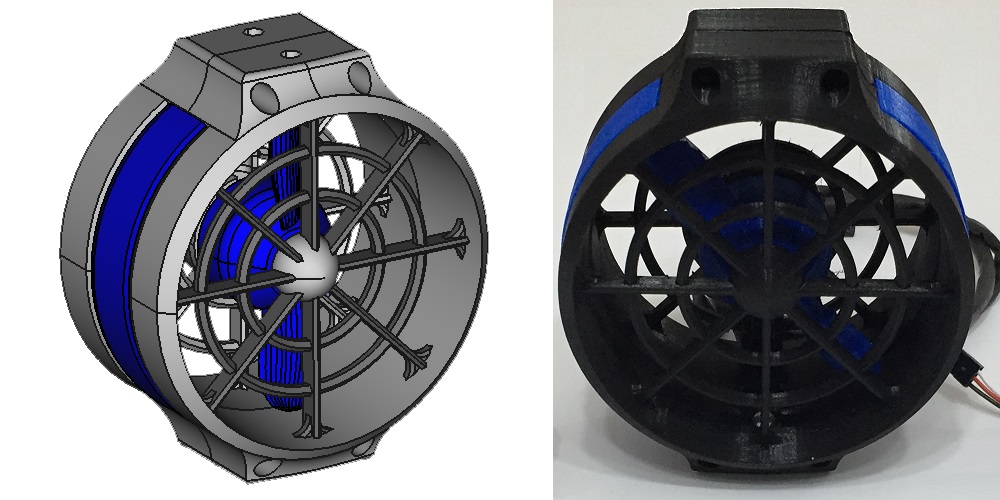

With its symmetric cylindrical design and with jet-like performance, it would be easy to be embedded in different types of UUV system. The safety features in body and circuits are created according the standard requirement of all related applications.
–ETR100 is Underwater Thruster with ESC Controller.
–Suitable for all types of Unmanned Underwater Vehicles (AUV & ROV)

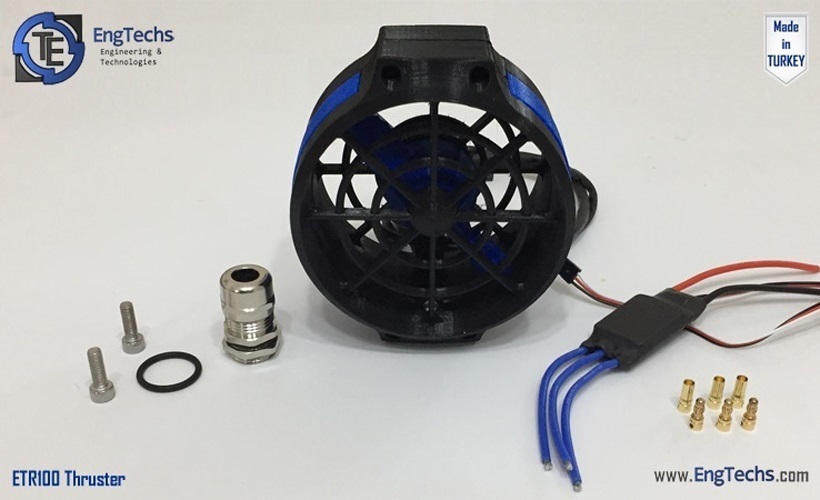

–Composed of: Thruster + Advance Functions Controller + 1 M Cable + Water Sealing Gland.
–Compact Size (Diameter: 10 cm & Thickness: 6 cm)
–Maximum Operation Rate: 12 Volts / 14.5 Amp

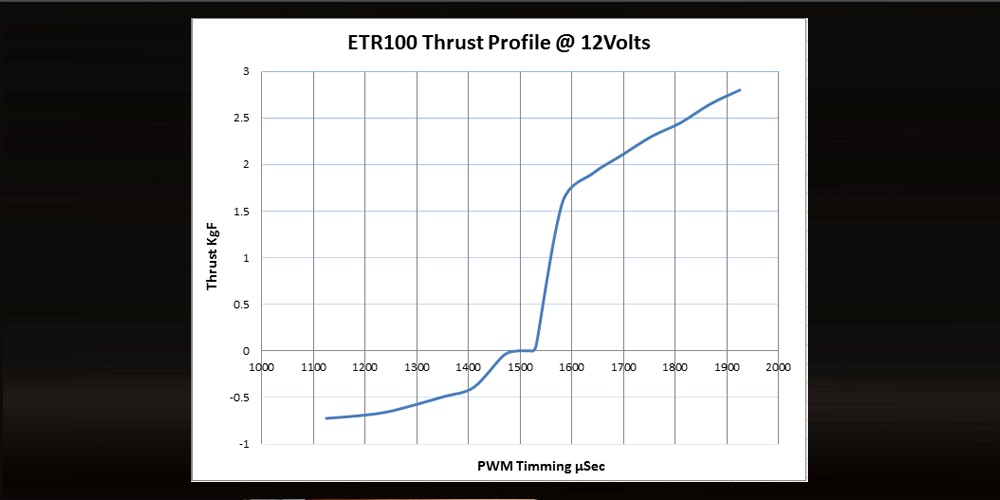

–Maximum Thrust: 2.8 KgF
–Safety Features Present (Mechanical and Electrical)
–Operation Management Software: Arduino Library
–.
ETR100 Thruster
